Robe Universal Interface™

Robe Universal Interface™

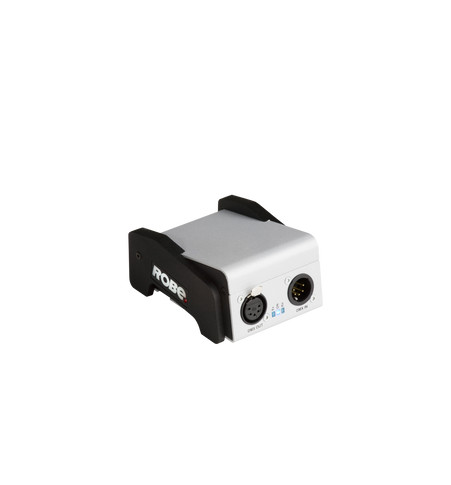

The Robe Universal Interface is a multi-functional tool box with 2 DMX ports and one USB port.

This unit communicates with a PC or Laptop via USB. The Robe Universal Interface provides fixture software updates and with additional ROBE RDM-network software provides RDM (Remote Device Management) functionality. The DreamBox supports RDM - new control protocol featuring AutoPatch and Fixture Status Monitoring. The Robe Universal Interface can be used in combination with Robe Media Fusion software as DMX input from any DMX console.



  • Suported operating systems

    • Windows 7, ME, 2000, XP, Vista, Server 2003, Linux, MacOS X v10.5 and above
  • Function

    • USB/DMX converter
    • Provides fixture software updates
    • Brings RDM communication protocol into DMX 512
  • Control systems

    • RDM-network software allows:

      • Fixture Status Monitoring
      • Fixture Personality Setting
      • AutoPatch

  • Connection

    • DMX data in/out: Locking 5-pin XLR
    • USB 2.0 (series B)
  • Electrical

    • No extra PSU needed
    • Galvanic isolation of 1kV between DMX Input and USB (DMX Output and USB)
  • Approvals

    • CE
  • Mechanical Specification

    • Rugged aluminium housing
    • Height: 54 mm (2.1″)
    • Width: 86 mm (3.4″)
    • Depth: 108 mm (4.3″)
    • Weight: 0.3 kg (0.7 lbs)
